CNC WITH ROTARY AXIS

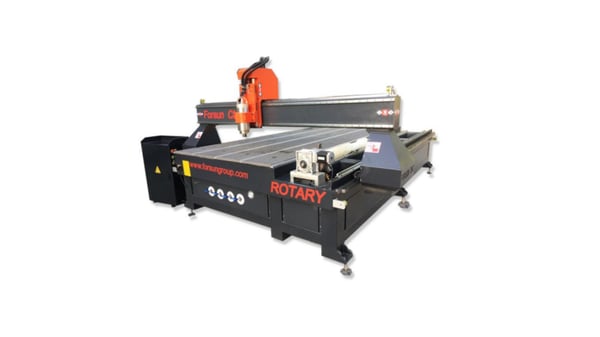

About CNC WITH ROTOR AXIS FS2030A-R

This machine is designed with a 4th axis to perform 2D and 3D engraving on round wood. Multiple rotary axes can process cylindrical and flat materials very efficiently. You can use it as a normal woodworking CNC router for engraving, cutting, carving and milling on wood sheet, acrylic, PVC, ABS sheet, aluminum sheet, brass, etc. After removing the flat table, you can use this for rotary engraving, 4 axis movements. Perfect for furniture, cabinets, railings, woodwork, doors, windows, acrylic signs, guitars, other musical instruments, etc. for production.

Standard set of machines

• Working area of ​​X,Y axes: 2000X3000mm
• Z axis working area: 300mm
• Rotary axis: 2 pcs. Rotary axles 200mm in diameter
• Motor: Stepper motor / AC Servo motor
• Type of work table: + T-profile PVC table (aluminum profile)
• Machine structure: Thick welded steel machine body. Strong portal and side support
• Spindle: 3.0 kW spindle with 24000 rpm, ISO30, ER32
• Positioning accuracy: ±0.03/300mm
• Processing speed: 25000/min
• Working accuracy: +/-0.03mm/300mm
• Control system: DHTN control system
• Control software supported: TType3, Ucancam, Artcam, Alphcam, Cabinet Vision, etc.
• Supported formats: G Code & M Codec
• Voltage: 380V/50HZ/60HZ, 3PH
• Machine weight: 2500 KGS

Additional components are available

• Work table: Vacuum
• Control system: Syntec controller, SIEMENS controller, DSP
• X, Y axes working area: 1300X2500mm, 1500X3000mm, 2000X4000mm
• Z-axis working area: 400mm, 500mm, 600mm
• Spindle: 4.5KW, 6.0KW air cooling spindle with 18000RPM, 9.0KW ATC spindle with 24000RPM. ER20/ER25/ER32
• Voltage: 220V/50HZ/60HZ, 3PH
• Chip breaker: 3.0KW chip collection system with two bags

Processed materials

• Milling of all types of plastics (PMMA, PET, PC, PP, PE, POM, PVC monolith and foamed PVC, PS, PS and others).
• Milling of furniture materials (LMDP, MDF, HDF, Plywood, solid wood).
• Milling of aluminum composite panels (ACP, DiBond and others).
• Milling of sheet soft metals (aluminum, bronze, copper).
• Artificial stone milling (Corian, Samsung, Himacs).

Adaptability

• Furniture industry (general woodworking, kitchen cabinets and doors, facades, etc.)
• Signs and advertising (indoor and outdoor signs, engraving, 3D letters)
• Relief sculptures and 3D engraving
• Plastics and Composites (ACP, ACM and Hard Surface Materials, etc.)

Price

The price of the machine starts from 18,000 euros for a standard set. When adding additional components, the price is adjusted. The price includes transportation, customs, VAT and other taxes.

Delivery

The machine is not stored. After payment, the production of the machine starts. Production term 30-40 days. The total production and delivery time is up to 4 months.

Warranty: 12 months

When contacting before the purchase, detailed information is provided and information about delivery terms is provided.

TO ORDER A MACHINE ACCORDING TO THE SPECIFICATIONS YOU NEED, CONTACT INFO@FREZENTA.LT
