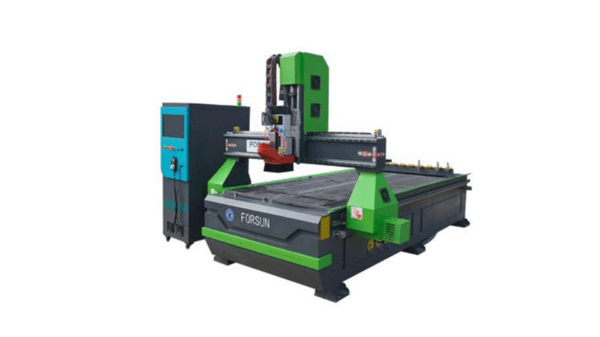

About ATC CNC FS1530L

This machine is an excellent choice for large companies. Compared with FS CNC FS1325A machine, ATC CNC FS1530L has automatic tool changer and independent tool block. Therefore, these machines can automatically change tools through computer programs, without stopping the machining process or changing tools manually. ATC CNC woodworking machines greatly improve work efficiency and are an ideal choice for mass production.

Standard set of machine

• Working area of X,Y axes: 1300x2500x200mm
• Z-axis working area: 200mm
• Work table type: Vacuum + T-profile PVC table (aluminum profile)
• Machine structure: Thick welded steel machine body. Strong portal and side support
• Spindle: 9.0 kW ATC spindle with 24000 rpm, ISO30, ER32
• Tool changer: Linear 10 pcs. toolbox
• Positioning accuracy: ±0.03/300mm
• Processing speed: 45000/min
• Working accuracy: +/-0.03mm/300mm
• Control system: DHTN control system
• Control software supported: Type3, UcancCAM, ArtcCAM, AlphCAM, Vectric, Enroute, MasterCAM Cabinet Vision, etc
• Supported formats: G Code & M Codec
• Voltage: 220V/50HZ/60HZ, 3PH
• Machine weight: 2500 KGS

Additional components are available

• Tool changer: Rotary drum with automatic tool changer magazine
• Control system: Syntec controller. SIEMENS controller, DSP
• Work table types: 2000X3000mm. 1500X3000mm, 2000X4000mm
• Z axis working area: 300mm, 400mm, 500mm, 600mm

Processed materials

• Milling of all types of plastics (PMMA, PET, PC, PP, PE, POM, PVC monolith and foamed PVC, PS, PS and others).
• Milling of furniture materials (LMDP, MDF, HDF, Plywood, solid wood).
• Milling of aluminum composite panels (ACP, DiBond and others).
• Milling of sheet soft metals (aluminum, bronze, copper).
• Artificial stone milling (Corian, Samsung, Himacs).

Adaptability

• Furniture industry (general woodworking, kitchen cabinets and doors, facades, etc.)
• Signs and advertising (indoor and outdoor signs, engraving, 3D letters)
• Relief sculptures and 3D engraving
• Plastics and Composites (ACP, ACM and Hard Surface Materials, etc.)

Price

The price of the machine starts from 25 530 euros for the standard set. When adding additional components, the price is adjusted. The price includes transportation, customs, VAT and other taxes.

Delivery

The machine is not stored. After payment, the production of the machine starts. Production term 30-40 days. The total production and delivery time is up to 4 months.

Warranty: 12 months

When contacting before the purchase, detailed information is provided and information about delivery terms is provided.

TO ORDER A MACHINE ACCORDING TO THE SPECIFICATIONS YOU NEED, CONTACT INFO@FREZENTA.LT
